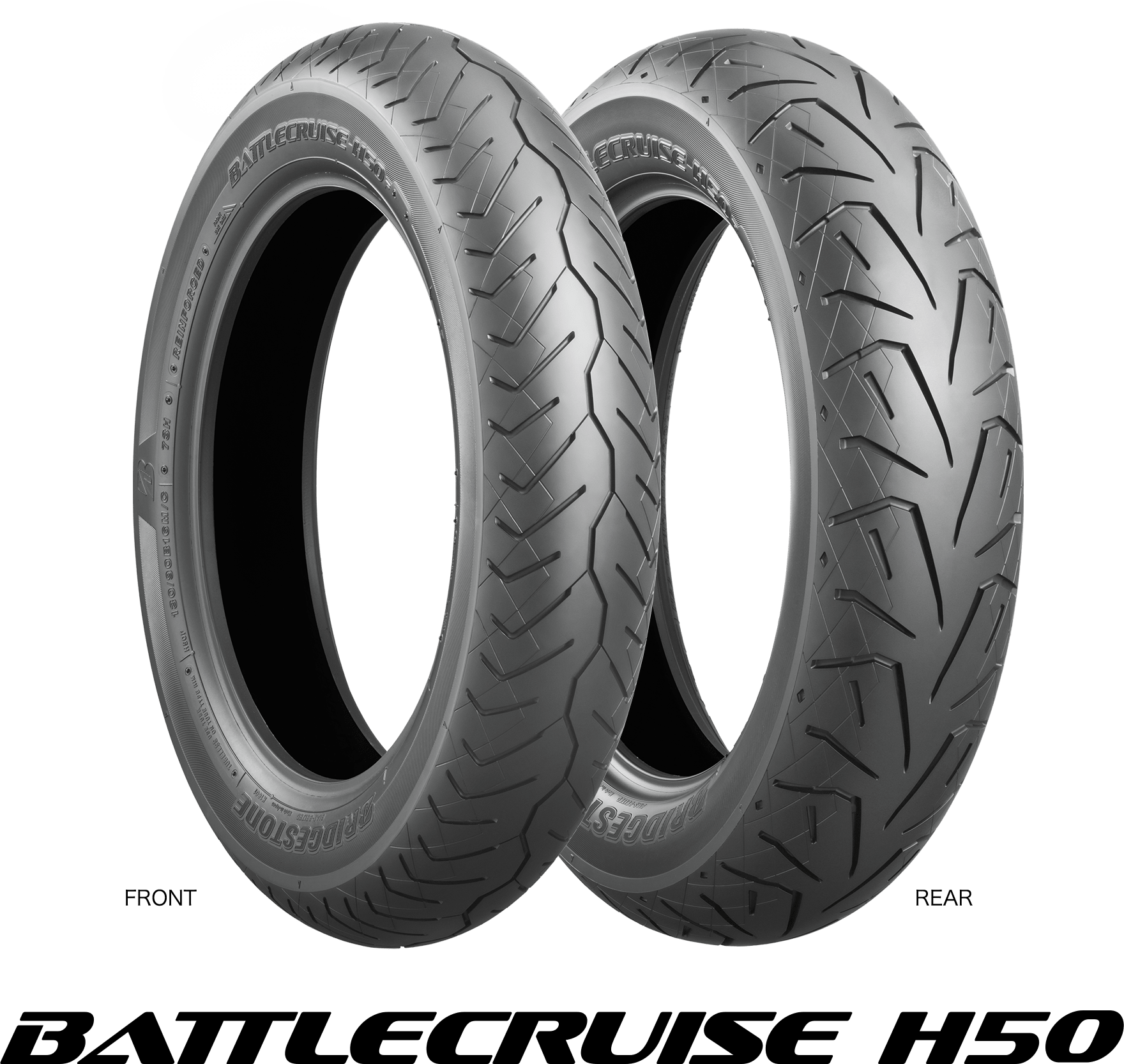

“BATTLECRUISE H50” invites American V-twin riders for breezy cruising…
Cruising in relaxed style on big displacement American cruisers.
This is where the BATTLECRUISE H50 promises to lead you. “Long Life”, “Smooth Handling” and “Comfort Riding” are the key features that H50 offers.
The rear tire can claim a long life as much as 2.7 times of the EXEDRA MAX.
Its handling capabilities allow even bikes of nearly 300kg to turn smoothly at both low and high speeds, minimizing fall-in characteristics in turns.
By reducing the transmissions of vibration of V-Twins, it provides a comfortable ride and helps to prevent fatigue, even when touring over long distances.
With the BATTLECRUISE H50, designed specially for big-displacement American cruisers, we want you to savor the laid-back cruising of the V-Twin.
Comfort with less fatigue
By optimizing rigidity distribution (vertical spring rate), the front tire absorbs energy inputs from the road surface while maintaining rigidity, reducing vibration through the handlebars.
Imperfections on the road surface are well damped. You will realize a real comfort touring with reduced fatigue even at long distance cruising.
（illustration）

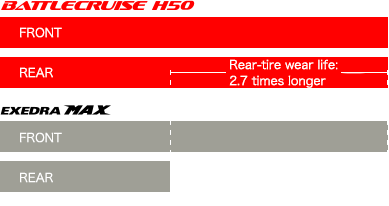

Significant improvement on wear life
- Test location:
- General public roads in the U.S.
- Test vehicle:
- Heritage Softail Classic
- Tire size:
- Fr) 130/90B16M/C, Rr) 150/80B16M/C
- Rim width:
- Fr) 3.00×16M/C, Rr) 3.00×16M/C
- Air pressure:
- Fr) 250kPa, Rr) 280kPa
Smooth handling
Using ULTIMAT EYE™ , the contact properties were analyzed to optimize the tire shape and structure accordingly.
This resulted in the generation of significant camber thrust, improving cornering grip and enhancing handling performance.
The large and uniform contact properties secures high stability in any lean angle.
Even on heavy machines that do not turn in quickly, control becomes easier and more enjoyable for the rider.

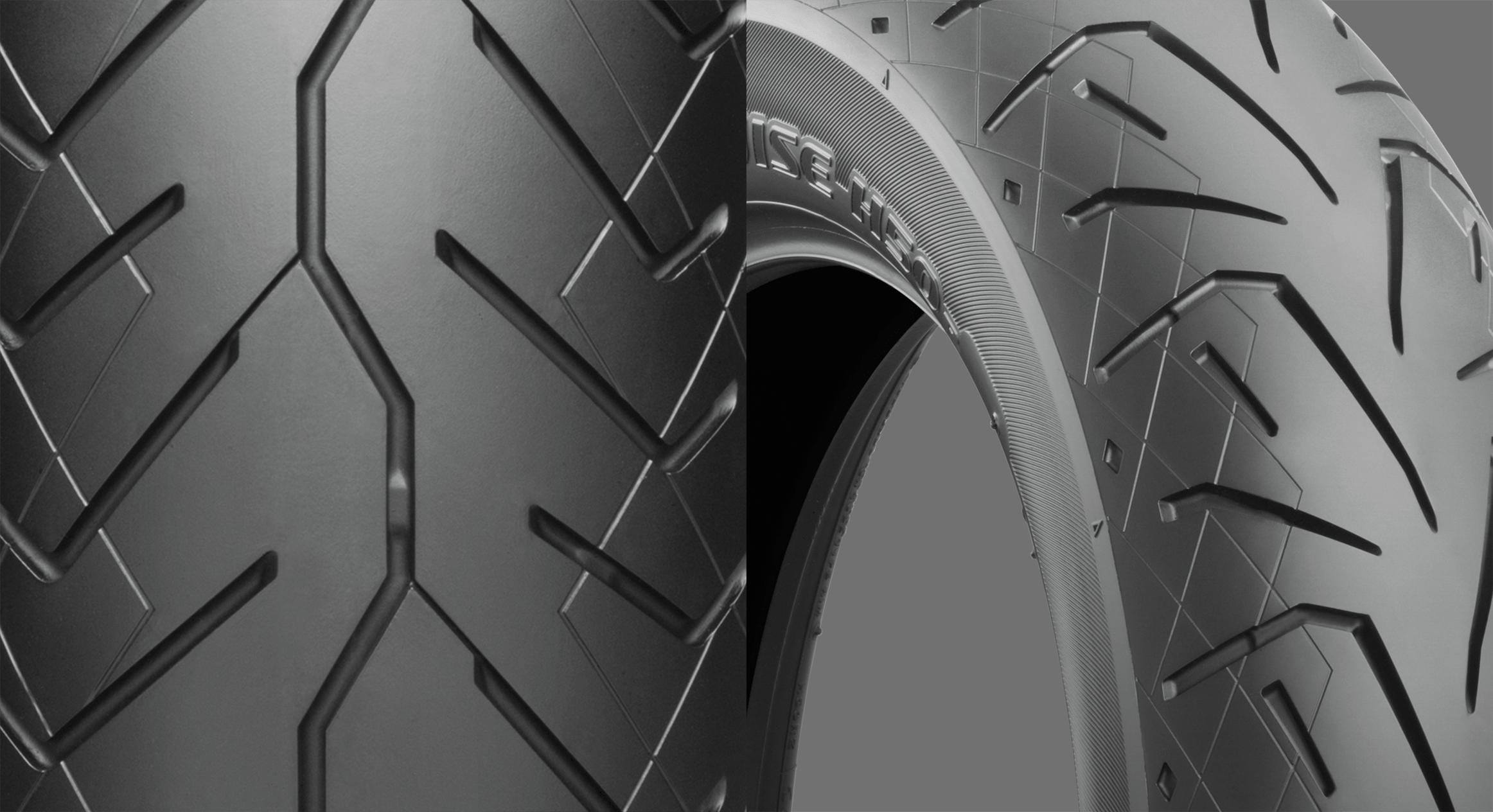

Tread Pattern
The tread pattern design of the BATTLECURISE H50 has been employed from EXEDRA MAX, adding diamond cut deco-grooves for the design enhancement.
Our pattern designer was inspired by leather craft stitches to come up with these deco-grooves.
BATTLECRUISE H50 Launch
The 3 day launch event for media was held in the vicinity of Orlando Florida near the Apoka lake during Oct.17th through 20th, 2016.
Find the video including some interviews from the link below.
Tire Size
2017 February
-
FRONT
130/90 B16 M/C 73H TL
130/90 B16 M/C 67H TL
100/90 B19 M/C 57H TL
80/90 -21 M/C 54H TL
-
REAR
130/90 B16 M/C 73H TL
140/90 B16 M/C 77H TL
150/80 B16 M/C 77H TL
160/70 B17 M/C 73V TL
This products size are scheduled to be released on 2018 February
-
FRONT
130/80 B17 M/C 65H TL
140/75 R17 M/C 67V TL
120/70ZR18 M/C (59W) TL
130/70 B18 M/C 63H TL
120/70ZR19 M/C (60W) TL
130/60 B19 M/C 61H TL
130/60 B21 M/C 63H TL
-
REAR
180/65 B16 M/C 81H TL
180/70 B16 M/C 77H TL
150/60ZR17 M/C (66W) TL
180/60 B17 M/C 75V TL
200/55 R17 M/C 78V TL
180/55 B18 M/C 80H TL
240/40 R18 M/C 79V TL
※ Please contact the tire manufacturer for the combination of tire and rim.
